2 door and 3 door controller models available
Flame-retardant ABS
DIN rail mountable
Power Over Ethernet (PoE) (IEEE 802.3af, Class 0)
Power Over Ethernet Plus (IEEE 802.3at, Class 0)
DC power: < 260 mA @ 12 volts DC < 180 mA @ 24 volts DC
Ethernet, TCP/IP, standard RJ45
Network-Server mode or Network-Client mode
Field flashable microcode
ASYNCH communications – no polling
UL 294 V6 Certified
Ambient operating temperature -40 to 50º C (-40 to 120º F)
Operating humidity is 0 – 90% (non-condensing)
Electric lock control relay, rated 2.0A @ 30VDC, form C
Control for Wiegand reader’s two LEDs and buzzer
Two TTL outputs (configurable default state)
Auxiliary Power output – PoE-Plus supplies 19 watts (1.6 amps @12 VDC)
10VDC output for Wiegand device, independent of input power source
Three configurable inputs - Door Sense, Request to Exit (REX), Optional Input (AUX)
Accepts Wiegand reader’s credential data
Wiegand connection supports 500ft cable length
IPBridge Power and network status indicator
Door control status indicator for each door
Power up diagnostics
Wiegand Readers Supported
Compatible with 13.56MHz and 125KHz readers*
Supports burst mode in keypad readers

* Please Note: Check the credential type and reader type on 13.56MHz credentials as some credentials have proprietary formats and may require R-1 reader

SKU: IPB2.0-2Door

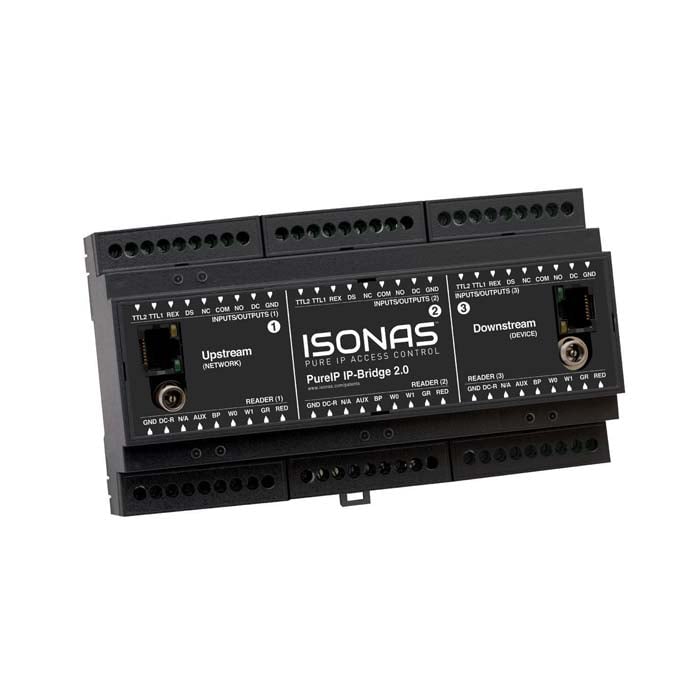

ISONAS Pure IP Bridge 2.0
