Field-selectable voice message and alarm tone, or alarm tone only, 75 db at 3 ft
The visual display provides a digital countdown, indicates lock release and verifies if the door was opened for egress
Choice of fixed 15 second exit and 1 second nuisance delay or field-selectable 15 or 30 second exit delay and 1 or 2 second nuisance delay
Field-selectable security or safety message
Field-selectable activation:
- Door movement (use with existing panic bar, no need for electrified panic)
- Exit device with switch kit
- Exit sense bar for non-latching doors

Field-selectable automatic or manual relock upon power up after emergency release or power loss
Integrated 3 position key switch provides:
- Lock and alarm reset
- Manual power-up
- Sustained bypass
- Timed bypass, adjustable. for 1, 15, 20 or 30 seconds

Field-selectable door prop alarm: Alarm sounds when door is left open after selected bypass time has elapsed
Anti-tailgate feature
Single or multi-door zone control and reset capability
A signal from the fire/life safety system will release the lock immediately for uninhibited egress in an emergency.

Control Inputs

Remote access control and REX input, field adjustable for 1, 15, 20 or 30 seconds
Remote reset input
Manual power-up input
Emergency release input
Anti-tailgate input

Monitoring Outputs

Door secure and unlocked output
Delayed egress activation alarm output

Patient and Infant Tracking System

The SDC Exit Check® is compatible with patient tracking systems, like those used for protection against infant abduction from hospital nurseries, and for the protection of patients in long term care facilities who may be endangered if they leave their care facility without supervision

1511S Model

For single doors equipped with:

Mortise or rim mount exit devices
Surface or concealed vertical rod exit devices with surface or concealed strikes and triggers
Mortise or cylindrical locksets

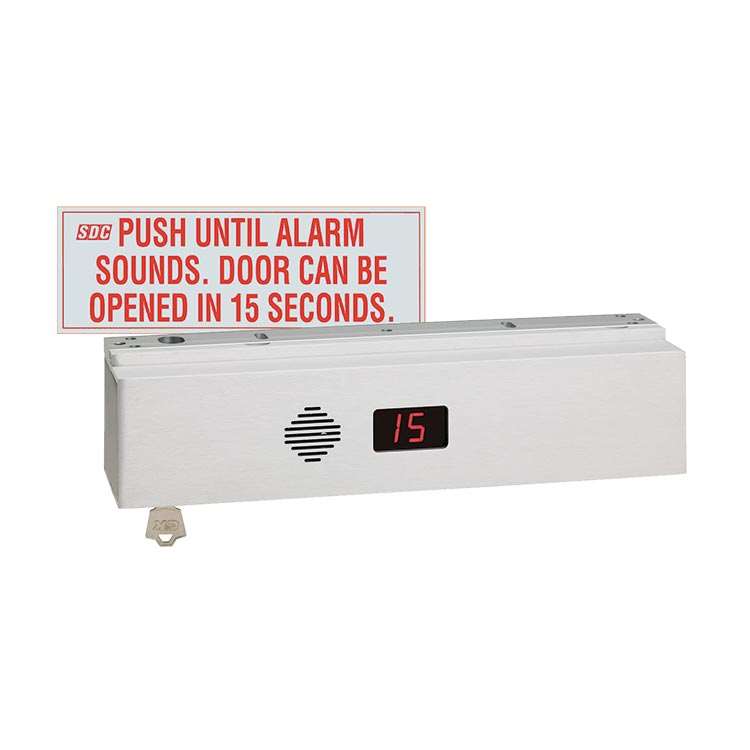

SDC 1511S
